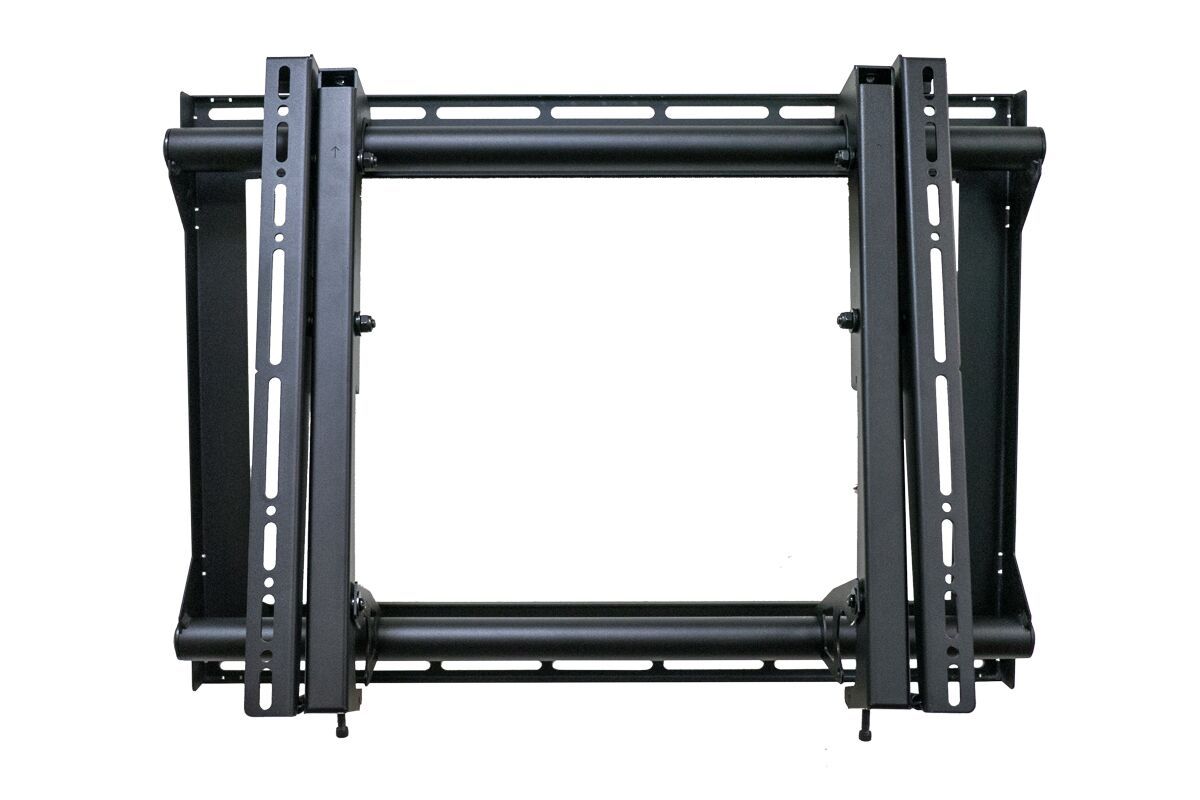

PFW 6870 Video Wall Mount

SKU: 8712285331725
Brand: Vogels
Category: Brackets & Mounts
In Stock
Subcategory: Video Wall Solutions
Retail price
€369.00
Video Wall Mount

The PFW 5870 Fixed display Video Wall Mount is a video wall mounting solution which features multi-monitor stacking, open design, a built-in kickstand for easy service access, custom spacers and top-adjustable mounting brackets with convenient adjustments along the x,y, and z axis for easy panel alignment. The PFW 5870 may be used instead of the PFW 6870 in areas of a video wall where pop-out functionality is not required.

Optional dedicated spacers dramatically reduce installation time. Spacers are available for the most used video wall displays or monitors.



Product category
Video Wall
Guarantee
5 years
Max. weight load (kg)
72
Min. screen size (inch)
37
Max. screen size (inch)
65
Hole pattern (VESA)
200 mm x 200 mm, 300 mm x 200 mm, 300 mm x 300 mm, 400 mm x 200 mm, 400 mm x 300 mm, 400 mm x 400 mm, 500 mm x 200 mm, 500 mm x 300 mm, 500 mm x 400 mm, 600 mm x 200 mm, 600 mm x 300 mm, 600 mm x 400 mm
Colour
Black
Min. distance to the wall (mm)
129
Max. distance to the wall (mm)
129
Suitable for screen type
LCD
Adjustable depth
No
